HPVR - PISTON PUMP - Trunnion Design
Description

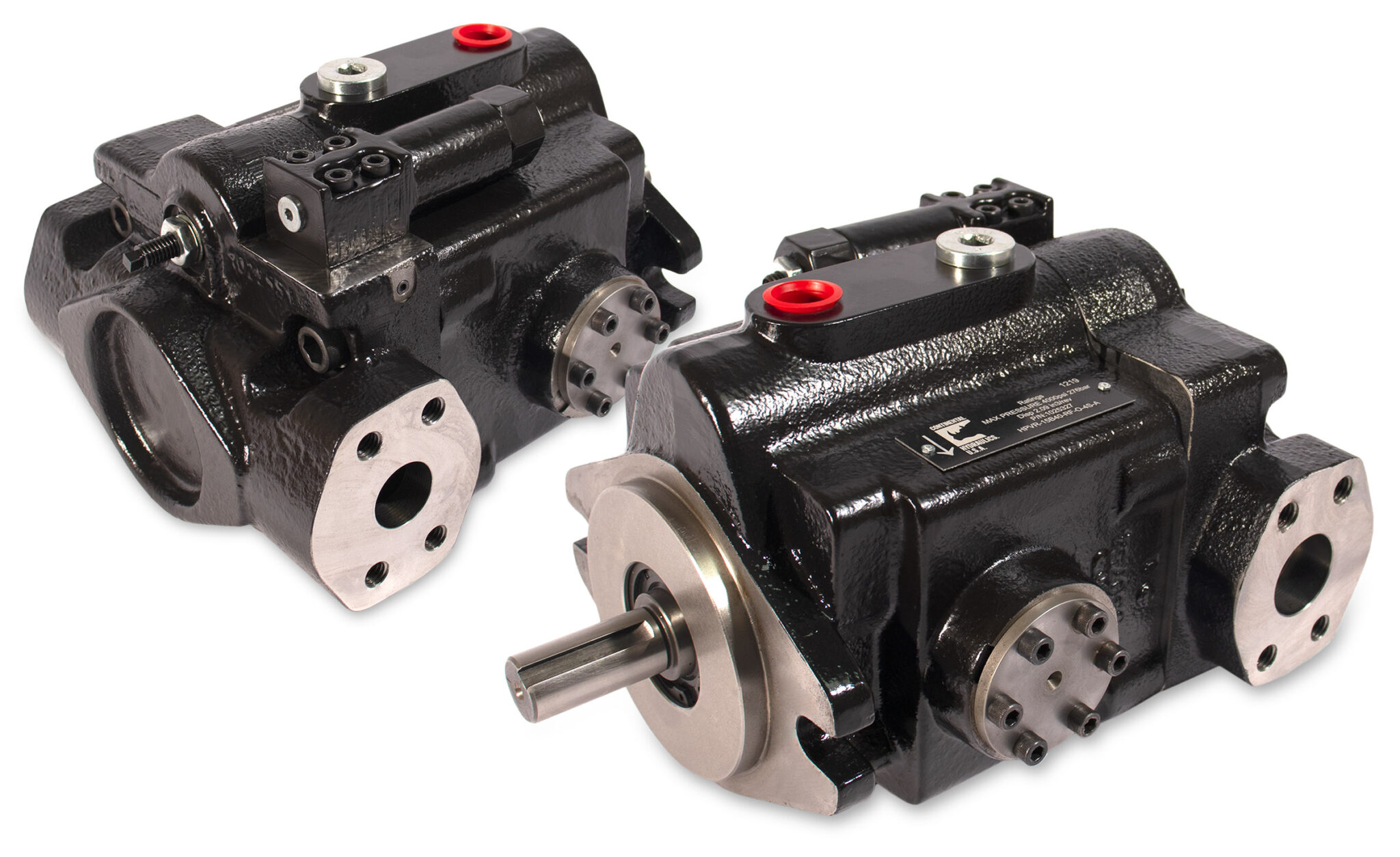

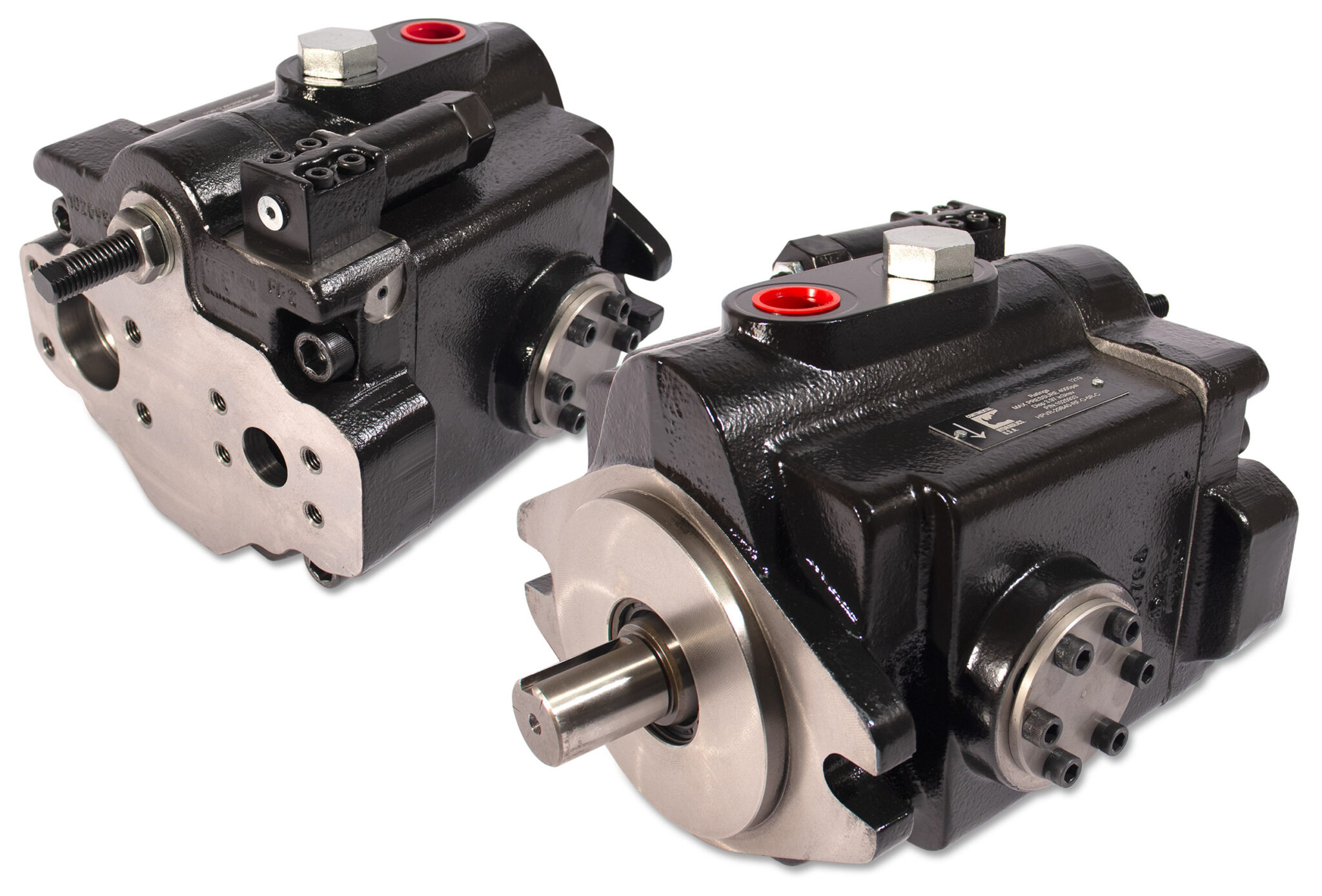

The HPVR series of inline axial piston variable displacement pumps, are available in five displacements and three compact frame sizes. These pumps feature medium-high working pressure capabilities that will meet most applications. The output flow and pressure is controlled by a variety of control options, and can easily work in conjunction with external control components making them the perfect choice for almost any application. The HPVR series pumps are available in both SAE and ISO mounting 2 bolt patterns. Porting is available in rear and side locations as well as thru-drive configurations.
Key Features:
- Continuous Duty Medium Pressures capable, up to 4000 PSI (275 Bar)
- Improved Trunnion Bearing design allows for long life and low hysteresis
- Tandem mounting capable
- Pressure Compensated, Load Sense, Remote Pressure

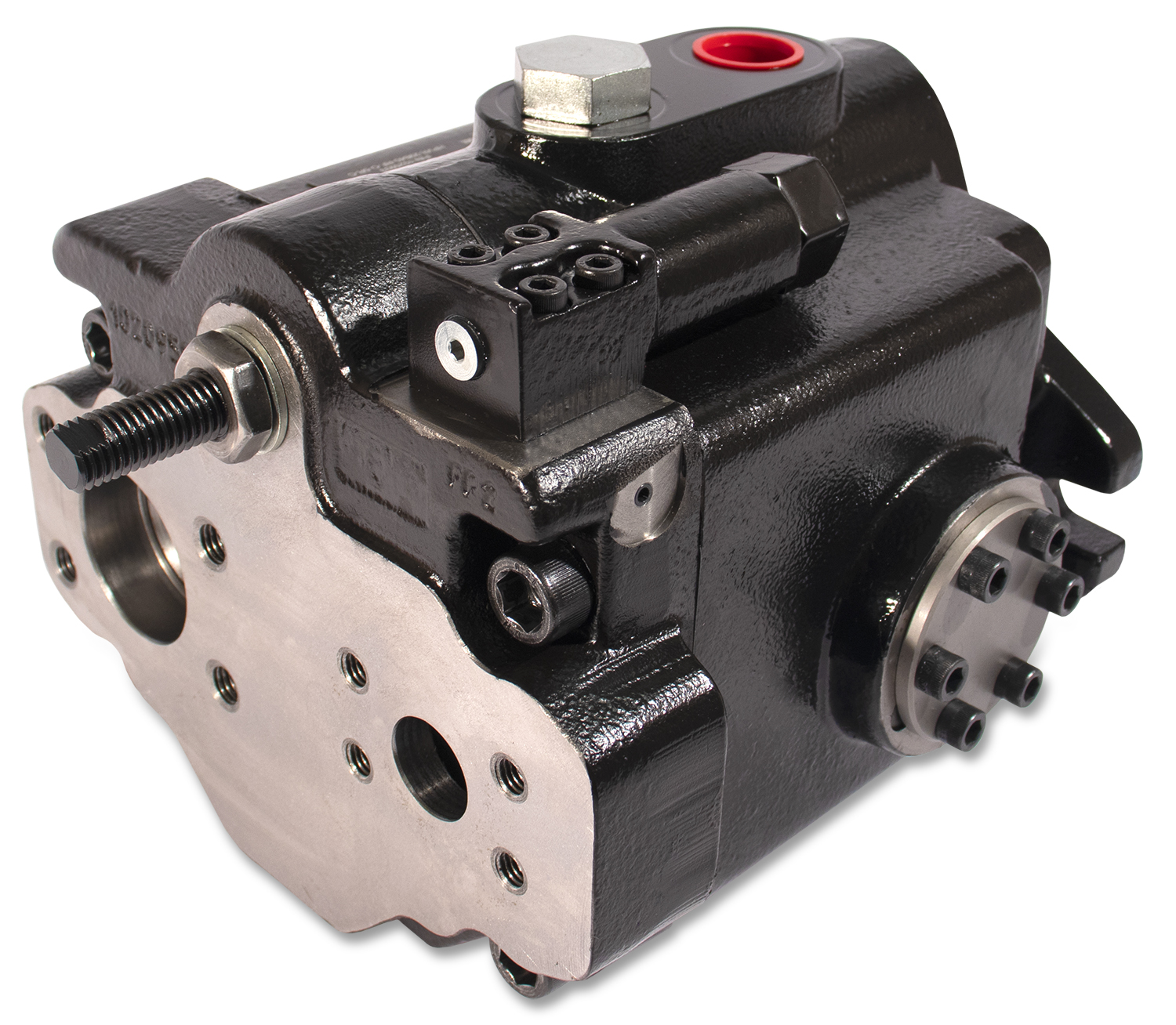

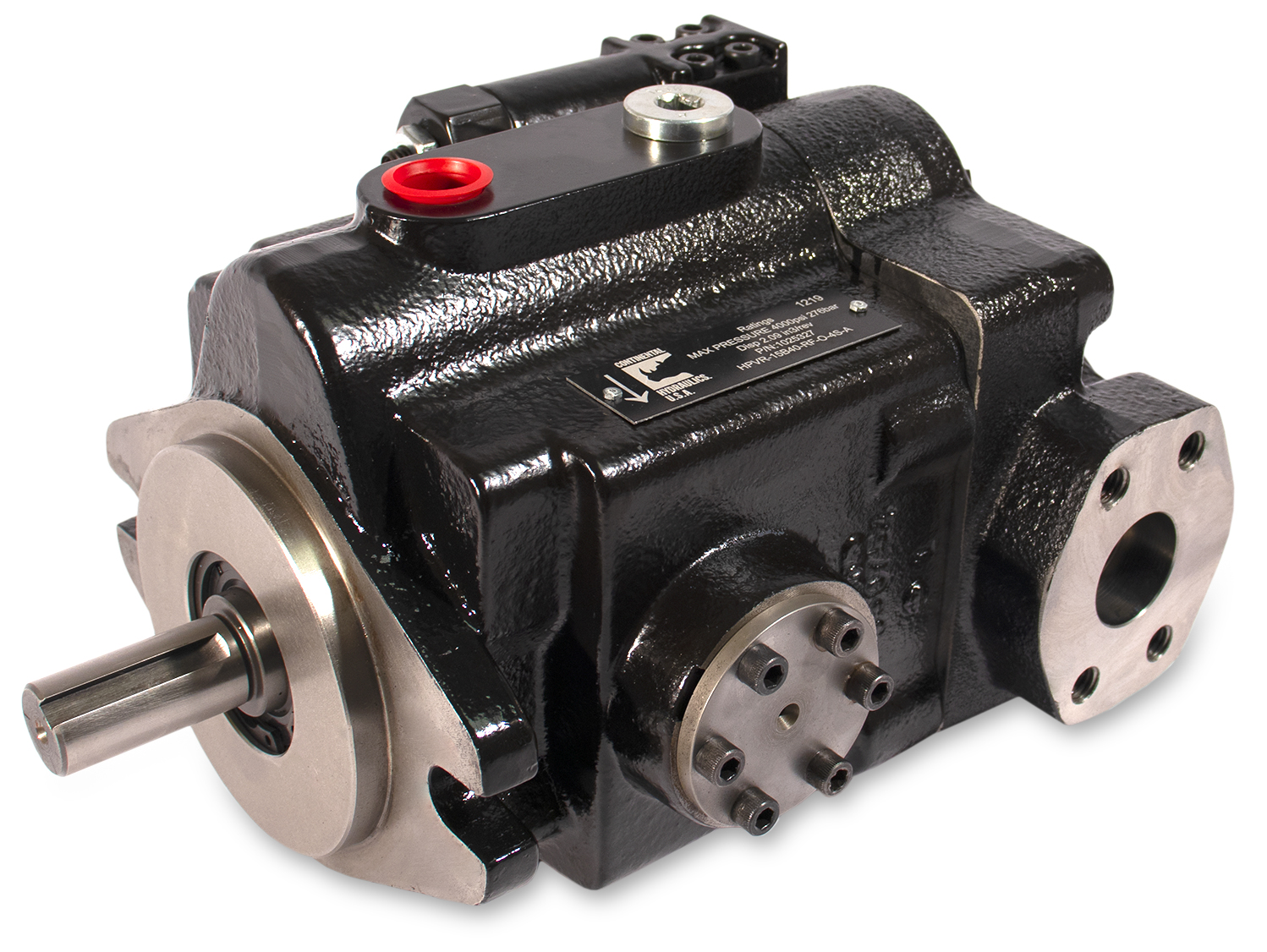

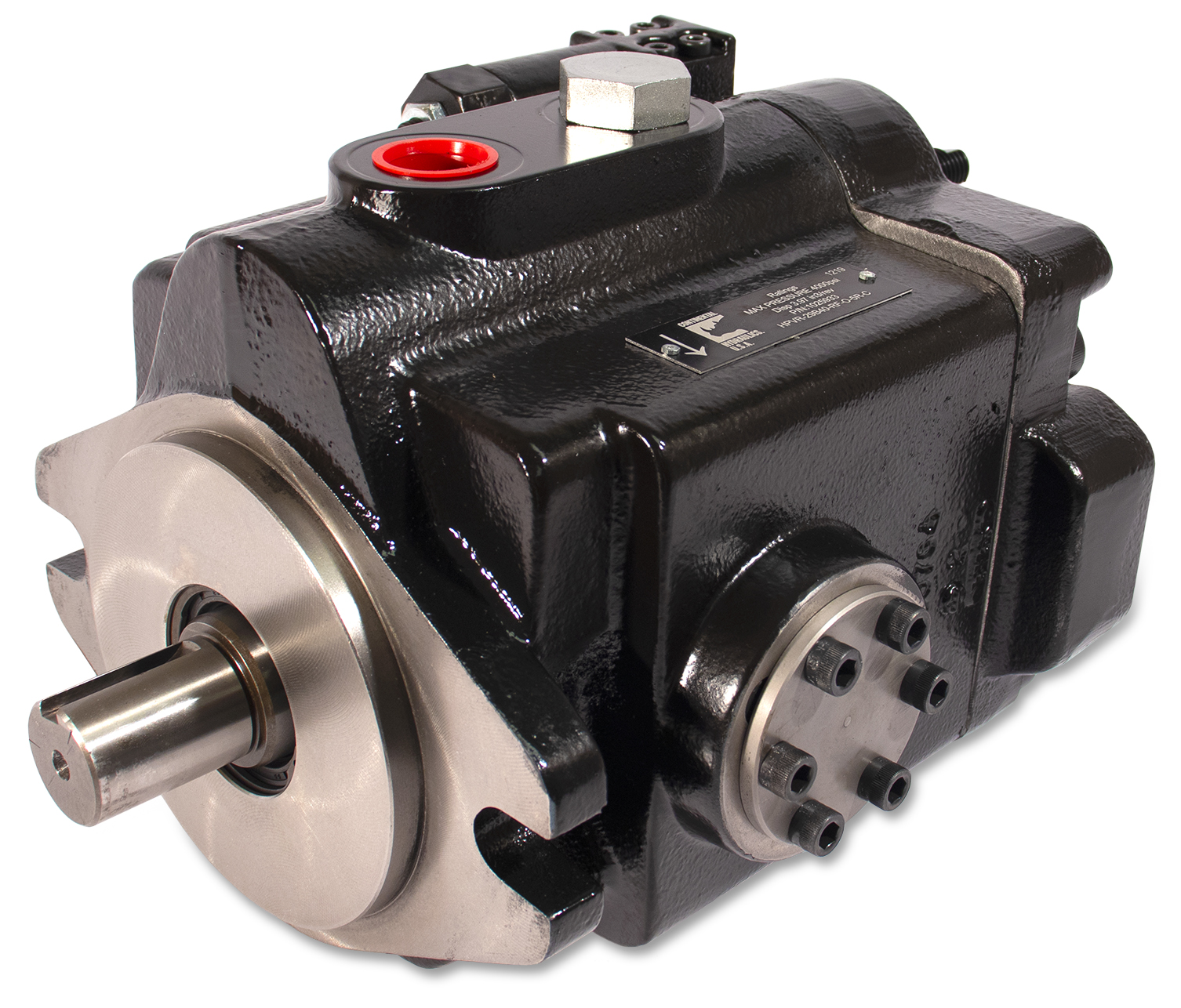

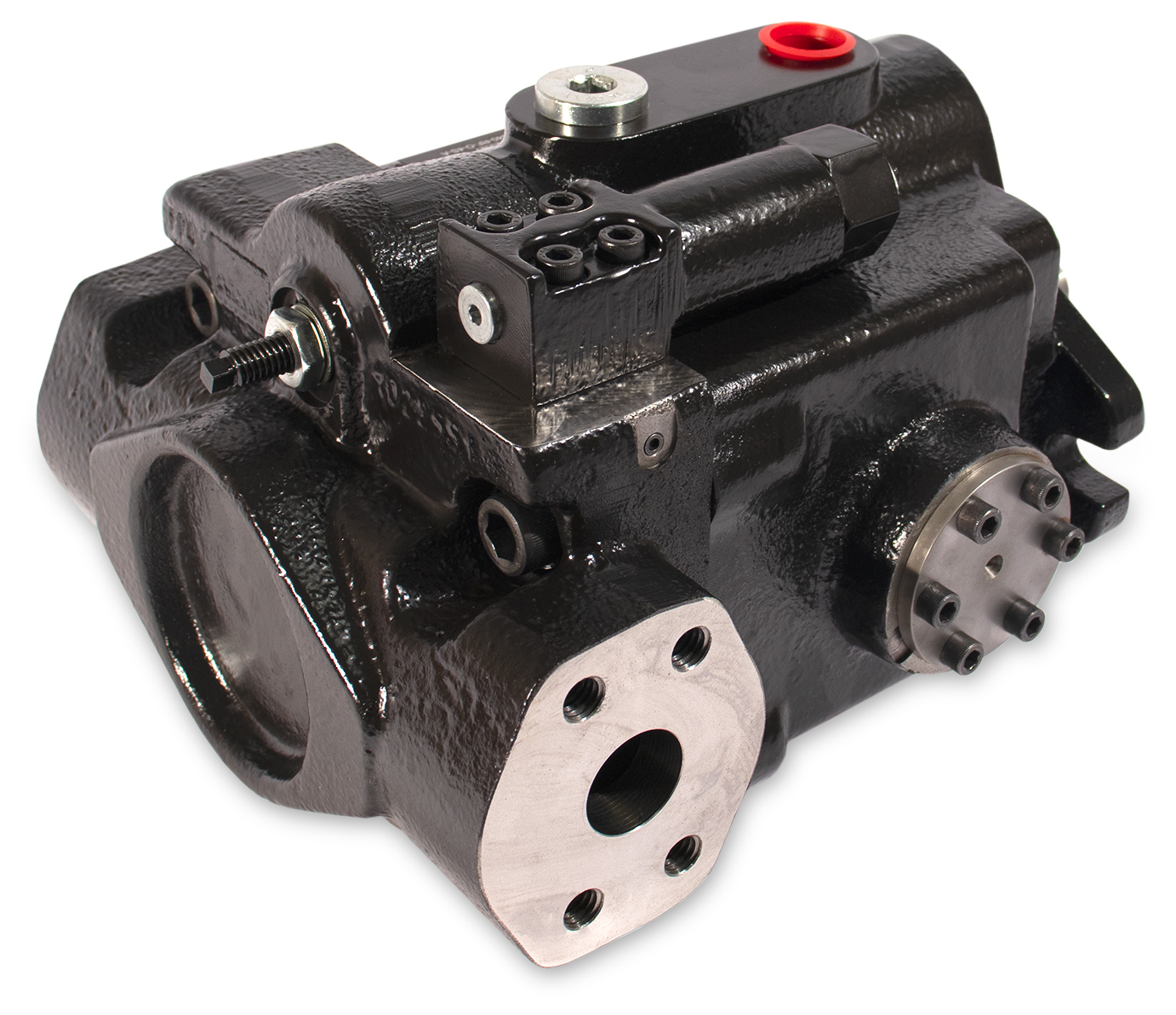

- Expanded Porting Options; Rear and Side ports with SAE Threads, Metric Threads, Split Flange Ports
- Interchangeable with many pump Manufactures
- Maximum volume adjustment – standard
- HPVR PDFs
HPVR PDFs
pdf
HPVR Series_Piston_Pump_Spec_1022375_Rev02-25
Size: 4.69 MB
Hits: 1383
Date added: 02-05-2025
Date modified: 02-05-2025
- HPVR Piston Pumps
HPVR Piston Pumps
pdf
Port Flanges 1031324 Specs 04_25
Size: 225.89 KB
Hits: 127
Date added: 03-31-2025
Date modified: 03-31-2025
pdf
HPVR Installation and Start Up 1023631 Rev 07-2018
Size: 304.66 KB
Hits: 3202
Date added: 08-24-2020
Date modified: 08-24-2020
pdf
HPVR-10 Service Parts_22
Size: 382.44 KB
Hits: 1041
Date added: 09-21-2022
Date modified: 09-21-2022
- 3D HPVR
